IHS Series
Fluidic Inline Heater
Effective and simple way
to inject perfusion solution using
in-line heating system
Heating Control System

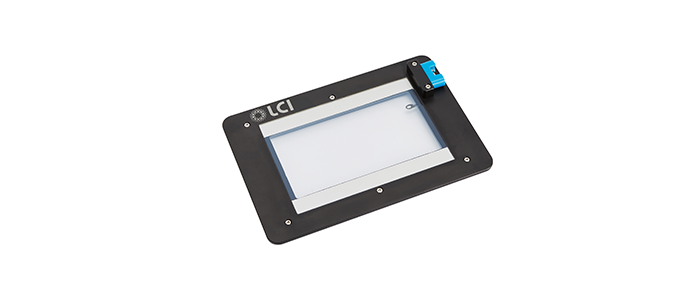

Heating Glass
Features
Precise temperature control using PID control
High durability & stability
Uniform heat distribution over glass
Compatible with inverted, upright and stereoscopic microscope
| Standard Heating Glass Specification | |
|---|---|
| Dimension | 160 x 110 mm |
| Weight | 157g |
| Sensor | Pt 100ohm |
| Material |
|

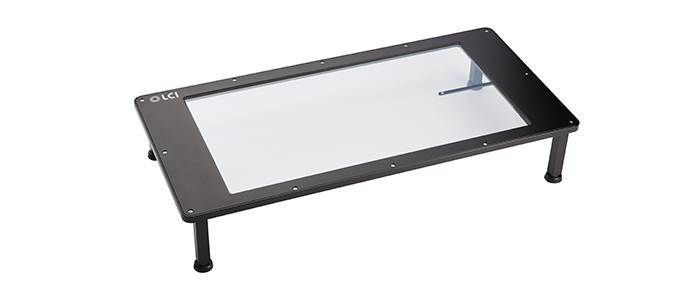

| Standard Table Type Heating Glass Specification | |
|---|---|
| Dimension | 430(W) x 209(D) x 75~115(H) mm |
| Weight | 500g |
| Sensor | Pt 100ohm |
| Material |
|

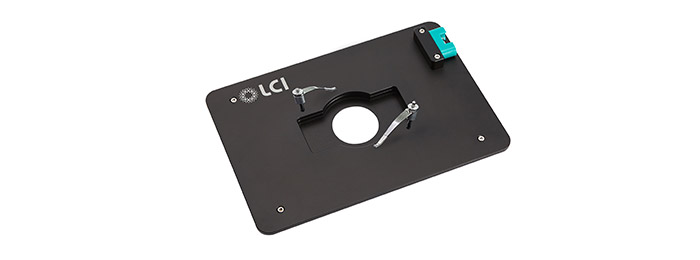

Heating plate
Features
Precise temperature control using PID control
Uniform heat distribution of plate
Compatible with commercial chambered slide, coverslip and culture dish
Compatible with immersion objective lens
Speification
| Standard Heating Plate Specification | |
|---|---|
| Dimension | 160 x 110 mm |
| Weight | 157g |
| Sensor | Pt 100ohm |
| Material | Anodized aluminum alloy |
Standard Type
Speification
Heating Glass
Tablet-type Heating Glass
Speification
| Standard Heating Plate Specification | |
|---|---|
| Dimension | 160 x 110 mm |
| Weight | 157g |
| Sensor | Pt 100ohm |
| Material | Anodized aluminum alloy |
Fluidic Inline Heater
IHS Series suggests effective and simple way to inject perfusion solution using in-line heating system
Features
Minimal dead volume of 150㎕
Easy assembly of flexible support arm using magnetic system
Easy attachment using clamp with magnetic on/off system
Accurate & precise temperature control of medium using PID control
Able to regulate temperature, program temperature gradients, and record temperature over time
Scheme
| Specification | |
|---|---|
| Internal Dead Volume | 150㎕ |
| Inlet/Outlet Tubing Size | O.D 1.1mm | I.D 0.7mm |
| Heating Method | Cartridge heater |
| Temperature Range | Ambient +3℃~45℃ |
| Inline Heater Dimension | 20ø x 139 mm |
| Supporting Arm Length | 500 mm |
| Inline Heater Main Body Material | Acetal component, aluminum alloy |
