Heating Control System

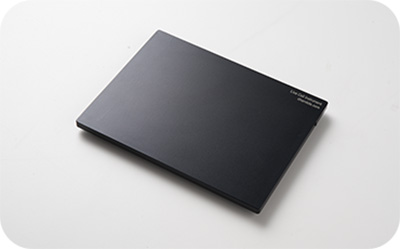

Heating Glass

Description

Heating Glass provides accurate temperature control to maintain the sensitive thermal condition of the sample. Uniform and even heat distribution over glass enable accurate and stable temperature control. Heating Glass is compatible with inverted, upright, and stereoscopic microscopes, and can be used with various types of chambers.

Features

Powerful Features

  • Minimize top plate temperature departure
  • Faster temperature arrival time
  • High durability & stability of heat

Increased Convenience

  • C-Type connector
  • Convenient height adjustment
  • New controller

Type

Beautiful Appearance

  • Flat-type design with no level difference: Full use of the top plate

WIDE Heating Area
390mm x 170mm

Double Heating System
for even heat conduction

(Glass + Coil Heater)

Straight and Level Surface
without Step

Improved Heat Distribution

Advanced Performance

  • Heat distribution across the entire top plate enables broad utilization of the entire plate.
  • Heat distribution is even as the temperature gap from the center to the border of the glass is small.

Special Comparison

Item Previous Product New Table Type Note
Power Consumption 50W 55W -
Plate Size 430 X 209 (mm) 430 X 210 (mm) * Whole plate usable
Weight 900g 1200g * Installation stability
Connection Method Magnet C-Type -
Sensor Pt 100ohm Pt 100ohm -
Deviation at 37℃ Setting ±1.0 ± 0.5 *Based on the center
Deviation at 45℃ Setting ±2.0 ± 0.8
37°C Arrival Time 300s 120s -
Exterior Material AL AL * Maximum usable area

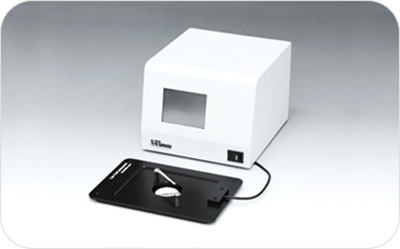

Heating plate

Description

Heating Plate provides accurate temperature control to maintain sensitive thermal condition of the sample. Uniform and even heat distribution of the plate enables accurate and stable temperature control. Heating Plate is compatible with various types of chambers including commercial slide, coverslip, and culture dish, and it is also compatible with immersion objective lens.

Type

Product no. Product
IP01-HEA-HG01 Heating Glass
IP01-HEA-THG1 Table-type Heating Glass

Features

Powerful Features

  • Minimize top plate temperature departure
  • Faster temperature arrival time
  • High durability & stability of heat

Increased Convenience

  • C-Type connector
  • Convenient height adjustment
  • New controller

Heating Plate

  • Precise temperature control using PID control
  • Uniform heat distribution of plate
  • Compatible with commercial chambered slide, coverslip and culture dish
  • Compatible with immersion objective lens

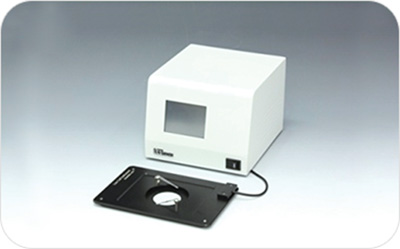

Standard Type

Speification

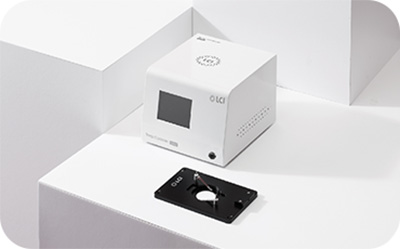

Heating Glass
Tablet-type Heating Glass

Speification

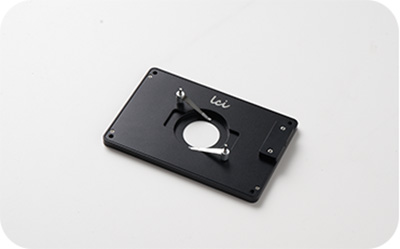

Standard Heating Plate Specification
Dimension 160 x 110 mm
Weight 157g
Sensor Pt 100ohm
Material Anodized aluminum alloy

Fluidic Inline Heater

IHS Series suggests effective and simple way to inject perfusion solution using in-line heating system

Features

  • Minimal dead volume of 150㎕
  • Easy assembly of flexible support arm using magnetic system
  • Easy attachment using clamp with magnetic on/off system
  • Accurate & precise temperature control of medium using PID control
  • Able to regulate temperature, program temperature gradients, and record temperature over time

Scheme

Specification
Internal Dead Volume 150㎕
Inlet/Outlet Tubing Size O.D 1.1mm | I.D 0.7mm
Heating Method Cartridge heater
Temperature Range Ambient +3℃~45℃
Inline Heater Dimension 20ø x 139 mm
Supporting Arm Length 500 mm
Inline Heater Main Body Material Acetal component, aluminum alloy

IHS Series

Fluidic Inline Heater

Effective and simple way
to inject perfusion solution using
in-line heating system
