Description
Anti-vibration Platform
MagLevit Hybrid
MagLevit provides optimized conditions to protect your sensitive device from vertical & horizontal vibration and noise by using hybrid floating technology, reducing vibration effectively during the operation of the device.
- Magnet-spring hybrid systems specifically designed to be optimized for anti-vibration
- Effective against external vibration as well as internal vibration
- Low resonant frequency enables applied in most real life situation
Features
Maintenance
Free
Simple &
Easy to use &
install
Economical &
semi-permanent
use
No additional
peripheral device
Technology
Special hybrid technology combined with spring and magnet provides vibration isolation from external vibration to the device (e.g. Microscope), or it also can be used to isolate vibration generated from device spreading to the outside (e.g. Centrifuge)
This vibration isolation platform reduces vibration in a vertical direction by spring technology & in a horizontal direction by magnet technology level plate simply using M8 bolts
Anti-vibration module with combination of neodymium magnet and spring
| Dimension | 130￠X 69mm |
|---|---|
| Net Weight | 500g |
| Load Capacity | 2~20kg |

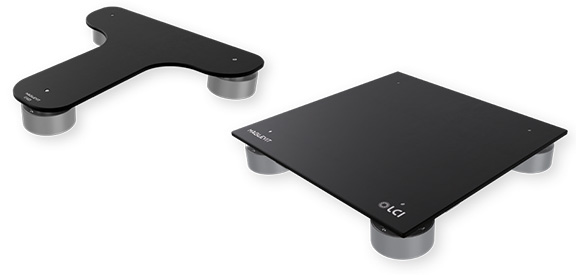

[Table-top type]
IP02-MGT-TT06
IP02-MGT-TR06
Specification
| Dimension (W x D x H) |
Rectangular shape : 600 x 600 x 80 (mm) | |
|---|---|---|
| Net Weight | ~15kg | |
| Load Capacity | T-shape | 8~60kg |
| Rectangular Shape | 10~80kg | |

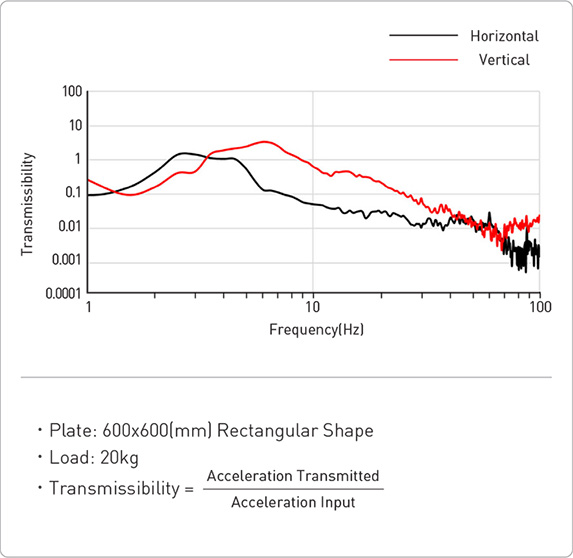

| Resonant Frequency | Horizontal | 3~4Hz |
| Vertical | 7~8Hz | |
* Plate size customizable
[Table type]
IP02-MLTA-2R06
| Dimension (W x D x H) |
Table-top MagLevit hybrid : 600 x 800 x 80 (mm) Table : 1200 x 750 x 750 (mm) |
|---|---|
| Net Weight | ~50kg |
| Load Capacity | 20~80kg |

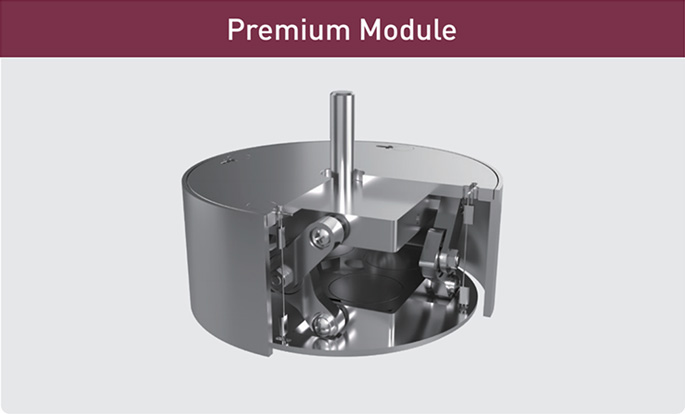

MagLevit Premium
Description
Advanced module with strong neodymium magnet and specially designed case
Specification
| Dimension | 130￠X 53mm |
|---|---|
| Net Weight | 500g |
| Load Capacity | 5~20kg |
[Table type]
IP02-MLP-TOPC
| Dimension | Depends on Customization | |
|---|---|---|
| Net Weight | Depends on Customization | |
| Load Capacity | 20~80kg | |
| Resonant Frequency | Horizontal | 3~4Hz |
| Vertical | 7~8Hz | |
Microscope on Table-top MagLevit®
Specification
| Table-top type | ||
|---|---|---|
| Net weight | ~10kg | |
| Maximum Load Capacity | T shape | 60kg |
| Rectangular shape | 80kg | |
| Minimum Load Capacity | 25kg | |
| Table type | ||
|---|---|---|
| Net weight | ~50kg | |
| Maximum Load Capacity (Rectangular shape) | 100kg | |
| Minimum Load Capacity | 25kg | |
