Anti-vibration Platform

MagLevit Hybrid

MagLevit provides optimized conditions to protect your sensitive device from vertical & horizontal vibration and noise by using hybrid floating technology, reducing vibration effectively during the operation of the device.

  • Magnet-spring hybrid systems specifically designed to be optimized for anti-vibration
  • Effective against external vibration as well as internal vibration
  • Low resonant frequency enables applied in most real life situation

Features

Maintenance
Free

Simple &
Easy to use &
install

Economical &
semi-permanent
use

No additional
peripheral device

Technology

Special hybrid technology combined with spring and magnet provides vibration isolation from external vibration to the device (e.g. Microscope), or it also can be used to isolate vibration generated from device spreading to the outside (e.g. Centrifuge)
This vibration isolation platform reduces vibration in a vertical direction by spring technology & in a horizontal direction by magnet technology level plate simply using M8 bolts

Description

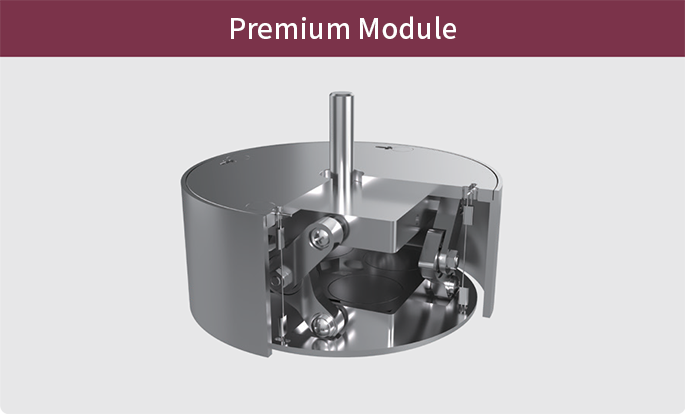

Anti-vibration module with combination of neodymium magnet and spring

Dimension 130￠X 69mm
Net Weight 500g
Load Capacity 2~20kg

[Table-top type]

IP02-MGT-TT06

IP02-MGT-TR06

Specification

Dimension
(W x D x H)		 Rectangular shape : 600 x 600 x 80 (mm)
Net Weight ~15kg
Load Capacity T-shape 8~60kg
Rectangular Shape 10~80kg
Resonant Frequency Horizontal 3~4Hz
Vertical 7~8Hz

* Plate size customizable

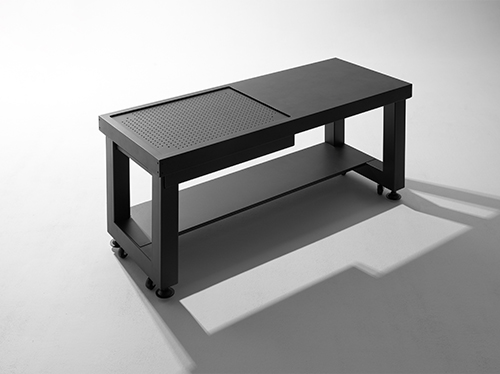

[Table type]

IP02-MLTA-2R06

Dimension
(W x D x H)		 Table-top MagLevit hybrid :
600 x 800 x 80 (mm)
Table : 1200 x 750 x 750 (mm)
Net Weight ~50kg
Load Capacity 20~80kg

Microscope on Table-top MagLevit®

Specification

Table-top type
Net weight ~10kg
Maximum Load Capacity T shape 60kg
Rectangular shape 80kg
Minimum Load Capacity 25kg
Table type
Net weight ~50kg
Maximum Load Capacity (Rectangular shape) 100kg
Minimum Load Capacity 25kg
