HEPA filter(grade H13) removes
0.3μm particles from all air by 99.95%

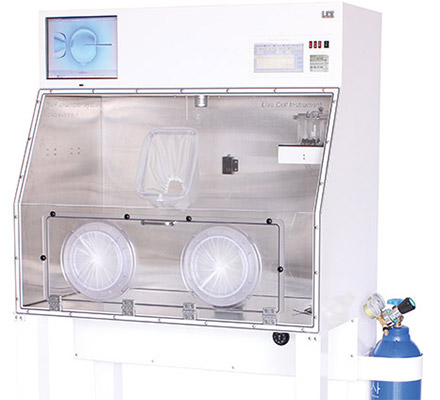

IVF Chamber
FS-1(IVF)
Designed with the latest technology for safe manipulating of live cells and embryos procedure by providing optimal environment including temperature and CO2.
Enclosed workstation maintains a stable environment of the chamber, and it also helps prevent contamination from the airborne.
Enclosed workstation maintains a stable environment of the chamber, and it also helps prevent contamination from the airborne.
Features
Automatic timer
Gas concentration recorder
Real-time graphic function
Separated on/off switch for CO2
& HEPA filter
Touchscreen
Magnet supported open/close system
UV lamp
Height adjustable
Control
| Temperature Control | |
|---|---|
| Control Method | PID |
| Heating Method | Cartridge heater (1kW) |
| Temperature Range | ambient +3℃~45℃ |
| Control Step | 0.1℃ |
| Time to equilibrate inside | < 30min |
| CO2 Control | |
|---|---|
| Control Range | 1~8% |
| Sensor Type | NDIR CO2 sensor |
| Time to reach at set value | < 10min |
| Time to equilibrate inside | < 30min |
| PID solenoid valve control Housing gas or tank are available |
|
Operator
| Specification | ||
|---|---|---|
| Single Operator | External size | 1000(W) x 730(D) x 1670(H) mm |
| Internal size | 920(W) x 620(D) x 620(H) mm | |
| Double Operator | External size | 1000(W) x 870(D) x 1670(H) mm |
| Internal size | 920(W) x 800(D) x 650(H) mm | |
